# Demystifying bitwise operations, a gentle C tutorial

This tutorial is in early draft. If you see any errors, feedback is greatly appreciated.

Bitwise operations are a fundamental part of Computer Science. They help Software Engineers to have a deeper understanding of how computers represent and manipulate data, and they are crucial when writing performance-critical code. Truth being said, nowadays, they are rarely used in the business code we write, and they stay hidden in libraries, frameworks, or low-level system programming codebases. The reason is simple: writing code that operates on bits can be tedious, less readable, not always portable, and, most importantly, error-prone. Modern programming languages nowadays have higher-level abstractions that replace the need for bitwise operations and “constructs”, and trading (potential) small performance and memory gains for readability is not such a bad deal. Plus, compilers are more intelligent nowadays and can optimise your code in ways you (and I) cannot even imagine.

To better understand my arguments, not so long ago, I’ve written a snake in C that uses only bitwise operations and squeezes everything into only a handful of `uint32_t`

and `uint64_t`

variables. The results (after macro expansions) are not that readable, even for an initiated eye.

In any case, this article is not about why we shouldn’t ever touch them; on the contrary, it is about why they are cool and how they can make specific code snippets orders of magnitude faster than the “higher-level-readable-modern approach”. If you are a programmer who enjoys competitive programming, knowing bitwise operations (in case you don’t know about them already) will help you write more efficient code.

Again, knowing how to deal with bitwise operations is necessary if you plan a career in systems programming, network programming or embedded software development.

# Table of contents

- Table of contents
- Number systems
- A certain symmetry and patterns
- Numbers and Data Types in C
- Transforming numbers from the decimal to other number systems (binary, hexadecimal, etc.)
- Bitwise operations
- Negative numbers and their binary representation
- Pitfalls to avoid when using bitwise operations
- Mandatory Computer Science Exercise - The solitary integer
- Printing numbers in binary by using bitwise operations
- Masking
- The power of masking - Pairwise Swap
- Getting, Setting, Clearing, Toggling the
`nth`

bit - Getting, Setting, Clearing, and Toggling a bit portion of a number
- Bitwise operations and their relationship with the powers of two
- Implementing a BitSet (or BitVector)
- Swapping two numbers
- Bitwise operations and chars
- Gray codes and permutations
- That’s it
- References

# Number systems

Nature gifted humankind ten fingers. As a direct consequence of Nature’s decision, our Math (and numbers) are almost always expressed in base 10. If an alien specie (with eight fingers) discovers mathematics, they will probably use base 8 (octal) to represent their numbers. Meanwhile, computers love base 2 (binary) because computers have only two fingers: 1 and 0, or one and none.

The Mayan numeral system was the system to represent numbers and calendar dates in the Maya civilization. It was a vigesimal (base-20) positional numeral system.

In mathematics, a base refers to the number of distinct symbols we use to represent and store numbers.

In our case (decimal), those symbols are `0`

, `1`

, `2`

, `3`

, `4`

, `5`

, `6`

, `7`

, `8`

, and `9`

. We must “recombine” the existing symbols to express more significant numbers. For example, `127`

is defined by *re-using* `1`

, `2`

, and `7`

. The three symbols are combined to express a greater quantity that cannot be described using mere fingers.

By far, the most popular number system bases are:

Number System | Base | Symbols |
---|---|---|

Binary | `2` |
[`0` , `1` ] |

Octal | `8` |
[`0` , `1` , `2` , `3` , `4` , `5` , `6` , `7` ] |

Decimal | `10` |
[`0` , `1` , `2` , `3` , `4` , `5` , `6` , `7` , `8` , `9` ] |

Hexadecimal | `16` |
[`0` , `1` , `2` , `3` , `4` , `5` , `6` , `7` , `8` , `9` , `A` , `B` , `C` , `D` , `E` , `F` ] |

To make things more generic, if \(b\) is the base, to write the number natural number \(a\) in base \(b\) (notation is \(a_{b}\)), then the formula is: \(a_{b}=a_{0}*b^{0}+a_{1}*b^{1}+a_{2}*b^{2}+...+a_{n}*b^{n}\), where \(a_{n}\), \(a_{n-1}\), …, \(a_{2}\), \(a_{1}\), \(a_{0}\) are the symbols in descending order, and \(a_{i} \lt b\).

For example, `1078`

in base `10`

(\(b=10\), so \(a_{i} \in \{0,1,2,3,4,5,6,7,8,9\}\)) can be written as:

If we were to change the base and write `1078`

from base `10`

to base `7`

, then \(b=7\) and \(a_{i} \in \{0,1,2,3,4,5,6\}\) (we only have seven fingers numerotated from `0`

to `6`

):

If we are to change the base and write `1078`

from base `10`

to base `2`

, then \(b=2\) and \(a_{i} \in \{0,1\}\):

As we’ve said earlier, computer store numbers in binary, so better visualise how our memory looks like, let’s take a look at the following diagram:

As you can see, to identify the bits (the sequence of zeroes and ones which are the acceptable symbols in binary) comprising the number, we have to find an algorithm to determine the numbers \(a_{i}\). Luckily, such an algorithm exists, and it’s straightforward to implement. It works the same, no matter what base we pick.

Based on the above picture, another important observation is that to represent the number 1078 in binary, we need at least ten memory cells (bits) for it (look at the most significant power of 2 used, which is 10). As a side rule, the fewer symbols we have for our base, the more we have to repeat existing symbols. If we want to go extreme and pick `b=1`

, we will have a Unary Numeral System, where representing a number `N`

is equivalent to repeating the unique symbol of the system `N`

times.

The algorithm for transitioning a number to any base \(b\) is as follows:

- We convert the number to the decimal base;
- We divide the decimal representation of the number by the base \(b\);
- We record the reminder to the division (this will be a digit in the base \(b\) representation);
- We continue dividing the quotient with base \(b\) and keep recording the remainder;
- If the quotient becomes
`0`

at some point, we stop.

The base \(b\) representation of the decimal number will be the sequence of remainders (in reverse order).

For example, let’s convert 35 to base 2:

After applying the algorithm, \(35_{10}=100011_{2}\). It’s easy to test if things are correct. We take each bit and multiply its corresponding power of `b=2`

: \(35_{10}=1*2^{5}+0*2^{4}+0*2^{3}+0*2^{2}+1*2^{1}+1*2^{0}\).

Converting a number from the decimal system to the hexadecimal number system is a little bit trickier; the algorithm remains the same, but because the hexadecimal system has 16 symbols, and we only have ten digits (`0`

, `1`

,…, `9`

) we need to add additional characters to our set, the letters from `A`

to `F`

. `A`

corresponds to 10, `B`

corresponds to `11`

, `C`

corresponds to `12`

, `D`

corresponds to `13`

, `E`

corresponds to `14`

, and `F`

corresponds to `15`

.

For example, let’s convert `439784`

to hexadecimal to see how it looks:

As you can see, \(439784_{10}=6B5E8_{16}\). Another popular notation for hexadecimal numbers is `0x6B5E8`

; you will see the `0x`

prefix before the number. Similarly, for binary, there’s the `0b`

prefix before the actual number representation (C doesn’t support this).

Because numbers in the binary numerical system take so much “space” to be represented, you will rarely see them printed in binary, but you will see them in hexadecimal.

Personally, when I have to “translate” from binary to hexadecimal, and vice-versa, I don’t apply any “mathematical” algorithm. There’s a simple “visual” correspondence we can use:

As you can see, each symbol from the hexadecimal format can be represented as a sequence of 4 bits in binary. `8`

is `1000`

, `E`

is `1110`

, and so on… When you concatenate everything, you have the binary representation of the number from hexadecimal to binary. The reverse operation also works. With a little *bit* of experience (no pun intended), you can do the “transformation” in your head and become one of the guys from The Matrix.

If you don’t have experience with the hexadecimal number systems, write the digits on a piece of paper a few times until you memorise them:

# A certain symmetry and patterns

Numbers, especially when represented in binary, have a certain symmetry associated with them. The most obvious pattern is the way odd and even numbers have to alternate `0`

and `1`

as their last (least significant) bit:

There’s no magic; this is the way numbers operate. If we move one column to the left (the bits corresponding to \(2^1\)), you will see every two (\(2^1\)) bits alternating: `00`

alternates with `11`

.

If we move one more column to the left (to the bits corresponding to \(2^2\)), you will see every four bits (\(2^2\)) alternating: `0000`

alternates with `1111`

.

If we move just another column to the left (to the bits corresponding to \(2^3\)), you will see every eight bits (\(2^3\)) alternating: `00000000`

alternates with `11111111`

.

Another interesting way to look at the numbers in binary is to “cut” their representation in half and observe a “mirroring” effect:

If we were to use our imagination, we could even fold the “bit surface”; we would get only a “surface” of `1`

bits, as the upper chunk will fill up the gaps in the lower one:

Another interesting pattern is looking at a “ladder” forming up, where each step is double the size of the previous one (look at the green line from the image below):

“The ladder” changes its step whenever it encounters a power of two. Also, if you look closer, every power of two has only one bit of `1`

at the power’s position in the number.

# Numbers and Data Types in C

The C programming language provides numeric data types to store numbers in the computer’s memory. As previously mentioned, they are stored in binary (as a sequence of zeroes and ones). I am sure you’ve heard about `char`

, `int`

, `unsigned int`

, `long`

, `long long`

, `float`

, etc. If you want to revamp your knowledge in this area, I guess this Wikipedia article is more than enough. The biggest problem with the “classic” types was that their size could differ from one machine to another.

For example, `char`

is defined in the standard as an integer type (that can be signed or unsigned) that contains `CHAR_BIT`

bits of information. On most machines, `CHAR_BIT`

is `8`

, but there were machines where for reasons beyond the scope of this article, `CHAR_BIT`

was `7`

. Working on the bits of a `char`

and assuming they are `8`

(99.99% of the cases) would create portability problems on the much fewer systems where `CHAR_BIT`

is `7`

. (*Note: CHAR_BIT is a macro defined in limits.h*)

The same goes for the typical `int`

. In the C standard, `int`

doesn’t have a fixed size in terms of the bits it contains, only a lower bound, meaning it should be a least `16`

bits long; on my machine is `32`

, so again, portability issues are in sight.

With C99, new fixed-length data types were introduced to increase the portability of the software we write. They can be found in the header file `inttypes.h`

(and in `stdint.h`

). Those are the types I prefer to use nowadays when I write C code:

`int8_t`

: signed integer with 8 bits;`int16_t`

: signed integer with 16 bits;`int32_t`

: signed integer with 32 bits;`int64_t`

: signed integer with 64 bits;

For each `intN_t`

signed integer, there is also an `uintN_t`

counterpart (unsigned integer, `N=8,16,32,64`

). For this reason, we will use the fixed-size integers from `stdint.h`

in our code.

Letting signed integers aside for a moment (as we will discuss later how negative numbers are represented), if we were to visually represent `uint8_t`

, `uint16_t`

and `uint32_t`

(skipping `uint64_t`

), they look like this:

The maximum value an `uint8_t`

variable can take is when all its bits are set to 1:

To determine the maximum unsigned integer we can hold in a variable of type `uint8_t`

, we add all the powers of two like this:

Or, we can use this formula: \(\sum_{i=0}^{n} 2^i =2^{n+1}-1\), so for each `uintN_t`

we can up with this table:

Unsigned Fixed Type | Maximum Value | C Macro |
---|---|---|

`uint8_t` |
2^{8}-1=255 |
`UINT8_MAX` |

`uint16_t` |
2^{16}-1=65535 |
`UINT16_MAX` |

`uint32_t` |
2^{32}-1=4294967295 |
`UINT32_MAX` |

`uint64_t` |
2^{64}-1=18446744073709551615 |
`UINT64_MAX` |

Yes, you’ve read well; there are also macros for all the maximum values. When you are programming, you don’t have to compute anything; it will be a waste of CPU time to redo the math all over again. So everything is stored as *macro constants* (if such a thing exists):

```
#include <stdio.h>
#include <stdint.h> // macros are included here
int main(void) {
printf("%hhu\n", UINT8_MAX);
printf("%hu\n", UINT16_MAX);
printf("%u\n", UINT32_MAX);
printf("%llu\n", UINT64_MAX);
return 0;
}
```

Output:

```
255
65535
4294967295
18446744073709551615
```

In the code section, there’s one slight incovenience, `%hhu`

, `%hu`

, `%u`

, etc. are not the right formats for the fixed-length types. To the right fornats are defined in `inttypes.h`

as macros:

```
#include <stdio.h>
#include <stdint.h> // macros are included here
int main(void) {
printf("%+"PRIu8"\n", UINT8_MAX);
printf("%+"PRIu16"\n", UINT16_MAX);
printf("%+"PRIu32"\n", UINT32_MAX);
printf("%+"PRIu64"\n", UINT64_MAX);
return 0;
}
```

Funnily enough on `clang`

I get warnings for using those formats, while on `gcc`

everything compiles just fine, without any warnings:

```
bits.c:300:26: warning: format specifies type 'unsigned char' but the argument has type 'int' [-Wformat]
printf("%"PRIu8"\n", UINT8_MAX);
~~~~~~~ ^~~~~~~~~
/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/stdint.h:107:27: note: expanded from macro 'UINT8_MAX'
#define UINT8_MAX 255
^~~
bits.c:301:27: warning: format specifies type 'unsigned short' but the argument has type 'int' [-Wformat]
printf("%"PRIu16"\n", UINT16_MAX);
~~~~~~~~ ^~~~~~~~~~
/Library/Developer/CommandLineTools/SDKs/MacOSX.sdk/usr/include/stdint.h:108:27: note: expanded from macro 'UINT16_MAX'
#define UINT16_MAX 65535
```

# Transforming numbers from the decimal to other number systems (binary, hexadecimal, etc.)

For this exercise, we will write a C function that takes an `uint16_t`

and prints its representation in other numerical systems to `stdout`

.

For everything bigger than base `10`

, we will use the letters from the alphabet. If the base is bigger than `36`

(`10`

digits + `26`

letters), we will print an error to the `stderr`

. We will start by defining an “alphabet” of symbols that map every number from `0..35`

to the digits and letters that we have available:

```
#define MAX_BASE 36
char symbols[MAX_BASE] = {
'0', '1', '2', '3', '4', '5', '6', '7', '8',
'9', 'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H',
'I', 'J', 'K', 'L', 'M', 'N', 'O', 'P', 'Q',
'R', 'S', 'T', 'U', 'V', 'W', 'X', 'Y', 'Z'
};
// For 0, symbols[0] = '0'
// ...
// For 11, symbol[11] = 'B'
// ...
// For 35, symbol[35] = 'Z'
```

The next step is to write a function that implements the basic algorithm described in the first section of the article.

```
#define MAX_BASE 36
char symbols[MAX_BASE] = { /** numbers and letters here */ };
void print_base_iter1(uint16_t n, uint8_t base) {
// Sanity check
if (base >= MAX_BASE){
fprintf(stderr, "Base %d is bigger than the possible accepted base", base);
return;
}
uint16_t r;
while (n>0) { // While quotient is bigger than 0
r = n % base; // Compute the remainder
n /= base; // Divide with base again
fprintf(stdout, "%c", symbols[r]); // Print the symbol
// Associated with the remainder
}
}
```

Everything looks good, but if we run the function, we will see a slight inconvenience; the symbols are printed in the reverse order we want them to be. For example, calling: `print_base_iter1(1078, 2);`

will yield the result: `01101100001`

, which is technically correct, but only if we read the number from right to left or use a mirror. Jokes aside, the correct answer is `10000110110`

.

Now let’s try to convert a number from decimal to hexadecimal to see some letters by printing `print_base_iter1(44008, 16);`

, the result given by our function is `8EBA`

, again if we read it from right to left, it’s “the excellent” result.

To fix this inconvenience, we can write the results in an intermediary, `char*`

(string), to control the order in which we show the characters. Or we can use a Stack data structure, where we push the remainders individually and then print them while we pop them out.

Another simpler solution is to use recursion + the only stack real programmers use (that was a joke!):

```
#define MAX_BASE 36
char symbols[MAX_BASE] = { /** */ };
static void print_base_rec0(uint16_t n, uint8_t base, uint16_t rem) {
if (n>0) {
uint16_t r=n%base;
print_base_rec0(n/base, base, r); // calls the method again
// printing the character from the next line
// doesn't happen until the previous call to
// the method is finished
fprintf(stdout, "%c",symbols[r]);
}
}
void print_base_rec(uint16_t n, uint8_t base) {
if (base>=MAX_BASE) {
fprintf(stderr, "Base %d is bigger than the possible accepted base", base);
return;
}
print_base_rec0(n, base, 0);
}
```

To simplify things, C supports *hexadecimal literals* (but not binary!), so we can assign numbers in hexadecimal to variables. In C, a hexadecimal literal is written with the prefix `0x`

(or `0X`

) followed by one or more hexadecimal symbols (digits). Both uppercase and lowercase work.

For example, we can write:

```
uint32_t x = 0x3Fu; // 0x3F is 63
// another way of writing:
//
// uint32_t x = 63
uint32_t y = 0xABCDu; // 0xABCD is 43981
// another way of writing:
//
// uint32_t x = 43981
```

We can also print the hexadecimal representation of a number using `"%X"`

(uppercase letters) or `"%x"`

(lowercase letters) as the format specifier:

```
int main(void) {
printf("%x\n", 63);
printf("%X\n", 43981);
return 0;
}
// Output;
// 3f
// ABCD
```

Hexadecimal literals allow us to insert easter eggs in our code base. For example, this simple line can act as a warning for developers just about to join your project:

```
printf("%x %x %x %x\n", 64206, 10, 2989, 49374);
// Output:
// face a bad c0de
```

Unfortunately, in C, there’s no binary literal…

# Bitwise operations

Bitwise operations are mathematical operations that manipulate the individual bits of a number (or set of numbers). As the name suggests, they work on bits.

The operations are:

Symbol | Operation |
---|---|

`&` |
bitwise `AND` |

`|` |
bitwise `OR` |

`^` |
bitwise `XOR` |

`~` |
bitiwse `NOT` |

Additionally, you have two more operations to shift bits (right or left) inside a number.

Symbols | Operation |
---|---|

`<<` |
left `SHIFT` |

`>>` |
right `SHIFT` |

If we apply one of the binary operators on two numbers, `A`

and `B`

, we obtain a third number `, C`

, where `C = A OP B`

.

If \(a_{7}, a_{6}, ..., a_{0}\) are the bits composing `A`

, \(b_{7}, b_{6}, ..., b_{0}\) are the bits composing `B`

, and \(c_{7}, c_{6}, ..., c_{0}\) are bits composing `C`

, then we can say that:

- \(c_{7} = a_{7} \text{ OP } b_{7}\);
- \(c_{6} = a_{6} \text{ OP } b_{6}\);
- … and so on

## Bitwise AND

In the C programming language, the `bitwise AND`

operator, denoted as `&`

(not to be confused with `&&`

), is a binary operator that operates on two integer operands and returns an integer operand. The operation is performed for each pair of corresponding bits of the operands. The result is a new integer in which each bit position is set to `1`

only if the corresponding bits of both operands are also `1`

. Otherwise, the result bit is set to `0`

.

Let’s give it a try in code:

```
uint8_t a = 0x0Au, b = 0x0Bu;
printf("%x", a&b);
// Output
// a
```

Explanation: `0x0A`

is `0b00001010`

, while `0x0B`

is `0b00001011`

, and if we were to put bits side by side and apply `&`

between them, we would get the following:

As you can see, only the `1`

bits are *selected*, so the result is `0x0A`

.

Trying to apply bitwise operations to `double`

or `float`

types won’t work:

```
double a = 0.0;
printf("%x", a&1);
```

Error:

```
bits.c:120:19: error: invalid operands to binary & (have 'double' and 'double')
120 | printf("%x", a&1.0);
| ^
```

One thing to take into consideration is the fact that `&`

is both associative and commutative.

The *associative* property means that the grouping of operands does not affect the result. So, if we have three or more operands, we can group them in any way we choose, but the result will remain the same:

```
// Associativity "smoke test"
uint8_t a=0x0Au, b=0x30u, c=0x4Fu;
printf("%s\n", (((a&b)&c) == (a&(b&c))) ? "True" : "False");
// Output:
// True
```

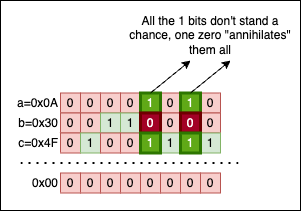

Visually it’s quite an intuitive property, so let’s put `a=0x0A`

, `b=0x30`

, and `c=0x4f`

side by side and see what things look like:

No matter how we group the operands, the results will always be the same: `0x00`

because there’s no column containing only `1`

bits. A single `0`

in a column invalidates everything. Isn’t this demotivational?

The *commutative* property means that the order of operands doesn’t affect the result. So, for example, writing `a&b`

renders the same result as writing `b&a`

.

```
// Commutativity "smoke test"
uint8_t a=0x0Au, b=0x30u;
printf("%s\n", ((a&b)==(b&a)) ? "True" : "False");
// Output:
// True
```

## Bitwise OR

The `bitwise OR`

(with its symbol: `|`

) is a binary operator that compares the corresponding bits of two integer operands a produces a new value in which each bit is set to 1 if either (or both) of the corresponding bits in the operand are one.

Again, let’s try using `|`

in our code:

```
uint8_t a = 0xAAu, b=0x03u;
printf("%x", a|b);
// Output
// AB
```

Explanation `0xAA`

is `0b10101010`

, while `0x03`

is `0b00000011`

. If you put the two numbers side by side and apply `|`

to their bits, we get the result `0xAB`

. Visually, things look like this:

If we look at the columns, and there’s at least one bit of `1`

, the result on that column will be `1`

, regardless of the possible `0`

(zeroes).

Just like `&`

, `|`

is both *associative* and *commutative*. Demonstrating this is outside the scope of this article, but put it like this, if there’s a single `1`

on the column, no matter how many `0`

bits we may encounter, the result will always be `1`

. A single `1`

has the power to *change* everything. Isn’t this motivational?

## Bitwise XOR

The `bitwise XOR`

operator (`^`

) is a binary operator that compares the corresponding bits of two operands and returns a new value where each bit is set to `1`

if the corresponding bits of the operand are different, and `0`

if they are the same.

Two identical numbers, `a`

and `b`

, will always `XOR`

to `0`

because all the matching bits will nullify themselves.

So, if `a==b`

then `a^b==0`

:

```
uint8_t a = 0xAFu, b=0xAFu;
printf("a==b is %s\n", (a==b) ? "True" : "False");
printf("a^b=0x%x\n", a^b);
// Output
// a==b is True
// a^b=0x0
```

Because we like patterns, we can also use `0xAA ^ 0x55 == 0xFF`

, visually it’s more satisfying than any other example I could think of:

Like `&`

and `|`

before, `^`

is an associative and commutative operation. So, another useless but interesting observation we can make is that `XOR`

ing all the numbers in a loop up to a power of two (`>=2`

) is always `0`

. Philosophically speaking, `XOR`

is the killer of symmetry:

```
void xoring_power_two() {
// An array containing a few powers of 2
uint8_t pof2[4] = {4, 8, 16, 32};
// For each power of two
for(int i = 0; i < 4; i++) {
uint8_t xored = 0;
// XOR all numbers < the current power of two
for(int j = 0; j < pof2[i]; j++) {
printf(" 0x%x %c", j, (j!=(pof2[i]-1)) ? '^' : 0);
xored^=j;
}
// Print the final result `= xored`
printf("= 0x%x\n", xored);
}
}
// Output
// 0x0 ^ 0x1 ^ 0x2 ^ 0x3 = 0x0
// 0x0 ^ 0x1 ^ 0x2 ^ 0x3 ^ 0x4 ^ 0x5 ^ 0x6 ^ 0x7 = 0x0
// 0x0 ^ 0x1 ^ 0x2 ^ 0x3 ^ 0x4 ^ 0x5 ^ 0x6 ^ 0x7 ^ 0x8 ^ 0x9 ^ 0xa ^ 0xb ^ 0xc ^ 0xd ^ 0xe ^ 0xf = 0x0
// 0x0 ^ 0x1 ^ 0x2 ^ 0x3 ^ 0x4 ^ 0x5 ^ 0x6 ^ 0x7 ^ 0x8 ^ 0x9 ^ 0xa ^ 0xb ^ 0xc ^ 0xd ^ 0xe ^ 0xf ^ 0x10 ^ 0x11 ^ 0x12 ^ 0x13 ^ 0x14 ^ 0x15 ^ 0x16 ^ 0x17 ^ 0x18 ^ 0x19 ^ 0x1a ^ 0x1b ^ 0x1c ^ 0x1d ^ 0x1e ^ 0x1f = 0x0
```

If we picture this in our heads, this result is not surprising:

Every bit has a pair; all pairs are `0`

, `XOR`

ing `0`

with `0`

is `0`

, and everything reduces to nothing.

## Bitwise NOT

In the C Programming language, the `bitwise NOT`

it’s a unary operator denoted by the `~`

character. It works on a single operand, negating all the operand bits by changing `1`

to `0`

and `0`

to `1`

.

Negating `0b0001`

is `0b1110`

, negating `0b0000`

is `0b1111`

and so on…

For example:

```
uint16_t a = 0xAAAAu; // a = 1010 1010 1010 1010 == 0xAAAA
uint16_t b = ~a; // b = 0101 0101 0101 0101 == 0x5555
printf("0x%X\n", a);
printf("0x%X\n", b);
// Output
// 0xAAAA
// 0x5555
```

And visually things look like this:

## Left Shift

The left shift operation is a bitwise operation, denoted with the symbols `<<`

, that shifts the bits of a binary number to the left by a specified amount of positions.

So, for example, if we want to shift the bits of `0b0000010`

(or `0x02`

) with three positions, we can write something like this:

```
uint8_t a = 0x02u; // 0b 0000 0010 = 0x02
uint8_t b = a << 3; // 0b 0001 0000 = 0x10
printf("After shift: 0x%x\n", b);
// Output
// After shift: 0x10
```

Visually things look like this:

When shifting bits to the left, the bits that “fall off” the left end are lost, and the resulting bits on the right are filled with zeros.

## Right Shift

The right shift operation is a bitwise operation, denoted with the symbols `>>`

, that shifts the bits of a binary number to the right by a given amount of positions.

So for example, if we want to shift `0xAA`

with `4`

positions, by performing `0xAA>>4`

we will obtain `0x0A`

:

```
uint8_t a = 0xAAu; // 1010 1010 = 0xAA
uint8_t b = a >> 4; // 0000 1010 - 0x0A
printf("After shift: 0x%X\n", b);
// Output
// After shift: 0xA
```

Visually things look like this:

# Negative numbers and their binary representation

Reading through this point, you may feel an elephant lurking in the server room. We haven’t touched on a vital subject: *How are signed integers represented in binary?*

In the C programming language, fixed-size signed integers are represented using *Two’s Complement*. The most significant bit of the number (also called `MSB`

) is used to the sign, and the rest of the bits are used to store the number’s value. The sign bit is `0`

for positive numbers and `1`

for negative numbers. By convention, the number `0`

is considered a positive number.

In *Two’s Complement*, the negative number is obtained by flipping all the bits of the positive value (`~`

) of the number and then adding `1`

.

For example, to obtain the binary representation of `-47`

, we should do the following:

- Transform
`47`

in binary:`00101111`

; - We flip the bits of
`47`

:`11010000`

; - We add
`1`

to the result of the previous step:`11010001`

.

So, `-47`

in binary is `11010001`

.

Another example. To obtain the binary representation of `-36`

, we should do the following:

- We transform
`36`

in binary:`00100100`

; - We flip the bits of
`36`

:`11011011`

; - We add
`1`

to the result from the previous step:`11011100`

.

There’s one bit less to represent the actual numerical value for signed integers because the sign bit is reserved. The maximum positive value a `int8_t`

can hold is: \(2^7-1=127\) and has the following representation:

The minimum value a signed integer of type `int8_t`

can hold is \(-2^7=128\). At this point, you may wonder why is that for negative we have `-128`

vs `127`

for positives. This happens because `0`

is considered to be positive by convention. `-128`

has the following representation:

You don’t have to do any computations to determine the maximum and minimum values a signed fixed-length type can get. The limits are already defined as macro constants in `"stdint.h"`

:

```
#include <stdio.h>
#include <stdint.h> // constant macros are included here
int main(void) {
printf("int8_t is in interval: [%hhd, %hhd]\n", INT8_MIN, INT8_MAX);
printf("int16_t is in interval: [%hd, %hd]\n", INT16_MIN, INT16_MAX);
printf("int32_t is in interval: [%d, %d]\n", INT32_MIN, INT32_MAX);
printf("int64_t is in interval: [%lld, %lld]\n", INT64_MIN, INT64_MAX);
return 0;
}
// Output
// int8_t is in the interval: [-128, 127]
// int16_t is in the interval: [-32768, 32767]
// int32_t is in the interval: [-2147483648, 2147483647]
// int64_t is in the interval: [-9223372036854775808, 9223372036854775807]
```

Just like in the previous example, it’s advisable to use the right string formats for the family of fixed-lenght signed integers: `PRId8`

, `PRId16`

, etc.

# Pitfalls to avoid when using bitwise operations

In the C programming language, UB (a cute acronym for *Undefined Behavior*) refers to situations (usually corner cases, but not always) when the C Standard does not cover the expected result after executing a piece of code. In those cases, compilers can choose to do things their way by crashing, giving erroneous or platform-dependent results (worse than crashing), or trolling us with Heisenbugs. Most cases of UB are ubiquitous, while others are more subtle and hard to detect.

In the C community, undefined behaviour may be humorously called “nasal demons” after a comp.std.c post that explained undefined behaviour as allowing the compiler to do anything it chooses, even “to make demons fly out of your nose”. (source)

Just like managing the memory yourself, there are a few things that you should take into consideration when writing C code that uses bitwise operations:

**A. Do not shift bits with more (or equal) than the width of the type:**

```
uint8_t a = 32;
uint8_t b = a << 32; // undefined behavior
// code compiles just fine
// don't assume the number is 0x0
```

If you try to compile this simple piece of code with `-Wall`

, the compiler (both `clang`

and `gcc`

) will you warn about the potential problems, but the code will still compile:

```
bits.c:150:19: warning: left shift count >= width of type [-Wshift-count-overflow]
150 | uint8_t b = a << 32; // undefined behavior
```

If I execute the code after compiling it, `b`

is `0`

. But don’t assume it will be `0`

on all platforms or with all compilers. That’s wrong.

Also, don’t rely on compiler warnings. They can only be raised in particular cases. Take a look at this code that can lead to UB:

```
srand(time(NULL));
uint8_t a = 32;
int shifter = rand();
uint8_t b = a << shifter;
printf("%hhu\n", b);
```

The code compiles without any warning and executes fine. The compiler couldn’t determine the value of the `shifter`

at compile time, so no `warning`

was raised. So whenever you are performing bitwise operations (especially shifts), you’d better know what you are doing.

**B. Do not shift bits using negative amounts**:

```
uint8_t a = 0x1u;
uint8_t b = a << -2; // undefined behavior
// code compiles just fine
```

**C.Do not shift signed integers to cause sign changes**:

```
int8_t a = -1;
int8_t b = a << 1; // undefined behavior
// code compiles just fine
```

The result of E1 « E2 is E1 left-shifted E2 bit positions; vacated bits are filled with zeros. If E1 has an unsigned type, the value of the result is E1 × 2E2, reduced modulo one more than the maximum value representable in the result type.

If E1 has a signed type and nonnegative value, and E1 × 2E2 is representable in the result type, then that is the resulting value; otherwise, the behavior is undefined.## Mandatory Computer Science Exercise - The solitary integer

Now that we understand the basics of bitwise operations let’s solve a *classical* Computer Science exercise called: *The solitary integer*. If you are curious, you can probably find it on leetcode and hackerrank (under the name *The Lonely Integer*).

The ask is straightforward:

```
Given an array of integer values, where all elements **but one** occur twice,
find the unique element, the so-called _solitary_ integer.
For example, if `L={1,2,3,3,8,1,9,2,9}`, the unique element is `8`,
because the rest of the elements come in pairs.
```

The first reflex to solve this exercise would be to brute force the solution by verifying each element with every other to find its pair. But the complexity of doing so is O(n^{2}), where n is the size of the input array - not excellent. But, as a rule of thumb, if you receive a question like this at an interview and don’t know how to approach it, mentioning the brute-force solution is a good starting point and can buy you some time until you come up with something better.

There are, of course, other alternative solutions:

- Sorting the array in
`O(nlogn)`

and then iterate through it by`i+=2`

. If`L[i]!=L[i+1]`

, you’ve just found the lonely integer. - Using a hashtable and count the frequency of the numbers. If the frequency of a key is
`1`

, the problem is solved; you’ve just found the lonely integer.

But all those solutions are slightly overkill if you know about `XOR`

. As we’ve said earlier, `XOR`

nullifies identical bits. We also know that `XOR`

is associative and commutative. So, why don’t we apply `XOR`

between all the numbers? In the end, only the bits without pairs will “survive”. Those surviving bits hold the answer to our problem.

- The bits of
`array[0]`

will (eventually) nullify themselves with the bits from`array[5]`

=>`array[0] ^ array[1] == 0`

; - The bits of
`array[1]`

will (eventually) nullify themselves with the bits from`array[7]`

=>`array[1] ^ array[7] == 0`

; - The bits of
`array[2]`

will (eventually) nullify themselves with the bits from`array[3]`

=>`array[2] ^ array[3] == 0`

; - The bits of
`array[6]`

will (eventually) nullify themselves with the bits from`array[8]`

->`array[6] ^ array[8] == 0`

; - The bits of
`array[4]`

will remain unaltered; they represent the solution;

So, the solution of exercise becomes:

```
static int with_xor(int *array, size_t array_size) {
int result = 0;
for(int i = 0; i < array_size; ++i)
result^=array[i];
return result;
}
int main(void) {
int array[9] = {1,2,3,3,8,1,9,2,9};
printf("%d\n", with_xor(array, 9));
return 0;
}
// Output
// 8
```

# Printing numbers in binary by using bitwise operations

In a previous section of the article, we devised a solution to transform numbers from one numeric system to another. Chances are we will never have to convert to base `11`

. So why write a function that transforms a number in the binary format using bitwise operations?

The simplest solution I could think of is the following:

```
void print_bits_simple_rec(FILE *out, uint16_t n) {
if (n>>1)
print_bits_simple_rec(out, n>>1);
fprintf(out, "%d", n&0x1u);
}
```

`print_bits_simple_rec`

is a recursive function that takes an `uint16_t`

and it prints its bits. At each recursive call, we shrink the number by shifting one bit to the right (`n>>1`

). We stop the recursive calls once the number reaches `0`

. After the recursive stack is built, we print the last bit of the number for each call (`n&0x1`

).

It’s not the scope of this article to explain recursion, but let’s see how things execute if we call the function on `n=0b00011011`

:

And then, once `n=0b00000001`

, we start printing characters backwards:

That’s one idea. Another idea is to use a *value table* where we keep the binary strings associated with all the binary numbers from `0`

to `15`

:

```
const char* bit_rep[16] = {
"0000", "0001", "0010", "0011",
"0100", "0101", "0110", "0111",
"1000", "1001", "1010", "1011",
"1100", "1101", "1110", "1111",
};
```

We can then write a few functions that re-use `bit_rep`

. For example, if we plan to print an `uint8_t`

, all we need to do is to write this function:

```
void print_bits_uint8_t(FILE *out, uint8_t n) {
fprintf(out, "%s%s", bit_rep[n >> 4], bit_rep[n & 0xF]);
}
int main(void) {
uint8_t n = 145;
print_bits_uint8_t(stdout, n);
}
// Output
// 10010001
```

This new function works like this:

`uint8_t n`

has 8 bits in total.- If we split
`n`

into two halves of 4 bits each, we can use`bit_rep[half1]`

and`bit_rep[half2]`

to print the content of`n`

; - To split
`n`

into two halves, we have to:`n>>4`

to get the first 4 bits;`n & 0xF`

to get the last 4 bits;

If you are confused about `n>>4`

and `n & 0xF`

, let’s visualise what’s happening and how bits move. We will use `n=145`

to exemplify.

If we consider the following:

- One
`uint16_t`

variable can contain two`uint8_t`

variables; - One
`uint32_t`

variable can contain two`uint16_t`

variables; - One
`uint64_t`

variable can contain two`uint32_t`

variables;

We can then write the following code, where each function re-uses the function of the *lesser* type. The idea is the same: we split the greater type into two halves and pass it to the function associated with the lesser type.

```
void print_bits_uint8_t(FILE *out, uint8_t n) {
fprintf(out, "%s%s", bit_rep[n >> 4], bit_rep[n & 0xFu]);
}
void print_bits_uint16_t(FILE *out, uint16_t n) {
print_bits_uint8_t(out, n >> 8); // first 8 bits
print_bits_uint8_t(out, n & 0xFFu); // last 8 bits
}
void print_bits_uint32_t(FILE *out, uint32_t n) {
print_bits_uint16_t(out, n >> 16); // first 16 bits
print_bits_uint16_t(out, n & 0xFFFFu); // last 16 bits
}
void print_bits_uint64_t(FILE *out, uint64_t n) {
print_bits_uint32_t(out, n >> 32); // first 32 bits
print_bits_uint32_t(out, n & 0xFFFFFFFFu); // last 32 bits
}
```

Having separate functions for each type is not ideal, but prevalent in the C programming language. Fortunately, we can use the `_Generic`

macro to group functions up.

```
#define print_bits(where, n) _Generic((n), \
uint8_t: print_bits_uint8_t, \
int8_t: print_bits_uint8_t, \
uint16_t: print_bits_uint16_t, \
int16_t: print_bits_uint16_t, \
uint32_t: print_bits_uint32_t, \
int32_t: print_bits_uint32_t, \
uint64_t: print_bits_uint64_t, \
int64_t: print_bits_uint64_t) \
(where, n)
```

So now, we can simply call `print_bits()`

regarding the input type (*! as long as the type is covered by a _Generic macro branch*):

```
uint8_t a = 145;
uint16_t b = 1089;
uint32_t c = 30432;
int32_t d = 3232;
print_bits(stdout, a); printf("\n"); // works on uint8_t !
print_bits(stdout, b); printf("\n"); // works on uint16_t !
print_bits(stdout, c); printf("\n"); // works on uint32_t !
print_bits(stdout, d); printf("\n"); // works on int32_t !
// Output
// 10010001
// 0000010001000001
// 00000000000000000111011011100000
// 00000000000000000000110010100000
```

# Masking

In low-level programming, bitwise masking involves the manipulation of individual bits of a number (represented in binary) using the operations we’ve described in the previous sections (`&`

, `|`

, `~`

, `^`

, `>>`

, `<<`

). A mask is a binary pattern that extracts and manipulates specific bits of a given value.

Using bitmasking techniques, we can:

- Set a specific bit to a value (
`0`

or`1`

); - Clear a specific bit, or a
*bit portion*from a number; - Flip the values of all the bits of a number.
- etc.

Let’s take a look at the previously defined function, `print_bits_uint8_t`

, that prints the binary representation of a `uint8_t`

:

```
void print_bits_uint8_t(FILE *out, uint8_t n) {
fprintf(out, "%s%s", bit_rep[n >> 4], bit_rep[n & 0xFu]);
}
```

`0xF`

is the mask we use to *select* the last `4`

bits of `n`

. This happens when we apply `n&0xF`

: all the bits of `1`

from the `mask`

are used to extract *information* from `n`

, and all the bits of `0`

from the mask discard *information* from `n`

:

When we create the mask, we can write the pattern by hand, using hexadecimal literals, or we can express them using powers of `2`

. For example, if you want a simple mask for one bit on the `nth`

position, we can write: `1<<nth`

. `2^nth == 1<<nth`

:

We can also “flip” the mask using the `~(mask)`

operation:

To get a “contiguous” zone of `1`

s, we can subtract `1`

from the corresponding power of twos:

# The power of masking - Pairwise Swap

In the famous book called *Cracking The Coding Interview* there’s one exercise where the reader is asked to swap the even bits with the odd bits inside a number:

If you ignore the ask to *use as few instructions as possible* our programmer’s reflex would be to:

- Keep all the bits of the number in an array;
- Perform swaps inside the array;
- Recreate the numbers based on the new array configuration.

Of course, a simpler solution uses bitwise operations and the masking technique. **Spoiler alert**, we will start with the actual solution, followed by some in-depth explanations:

```
uint16_t pairwise_swap(uint16_t n) {
return ((n&0xAAAAu)>>1) | ((n&0x5555u)<<1);
}
```

Cryptic, but simple:

```
uint16_t n = 0xBCDDu;
uint16_t n_ps = pairwise_swap(n);
print_bits(stdout, n); printf("\n");
print_bits(stdout, n_ps); printf("\n");
// Output
// 1011110011011101
// 0111110011101110
```

The key to understanding the solution lies in the patterns described by the binary numbers `0xAAAA`

and `0x5555`

. `0xAAAA`

selects all the even bits of `n`

, while `0x5555`

selects all the odd bits of `n`

. If we put the numbers side by side, we should see that:

At this point, the information initially contained in the input number (`n=0xBCDD`

) is contained in the two numbers:

`0xBCDD & 0x5555`

will contain the odd bits of`0xBCDD`

;`0xBCDD & 0xAAAA`

will contain the even bits of`0xBCDD`

;

Now we need to swap them. We will shift the even bits one position to the left, and the odd bits one place to the right, so we don’t lose any. To *recombine* the two interlacing patterns back, we use the `|`

operation.

# Getting, Setting, Clearing, Toggling the `nth`

bit

## Getting the `nth`

bit of a number

To get the `nth`

bit of a number `n`

, we can use the `&`

and `>>`

bitwise operations:

- We shift the number
`>>`

with`nth`

positions; - We apply a simple mask to
`&0x1`

for obtaining the last bit;

Most online resources (ChatGPT included) will recommend you the following two solutions for retrieving the `nth`

bit:

A macro:

```
#define GET_BIT(n,pos) (((n)>>(pos))&1)
```

Or a method:

```
int get_bit(int num, int n) {
return (num >> n) & 0x1u;
}
```

Visually, both solutions work like this:

I prefer using a method instead of a macro, depending on the context. It’s best to validate the input and ensure `n`

is not negative or bigger than the size (in bits) of `num`

. Otherwise, things can lead to *UB* fast:

```
inline uint8_t get_nth_bit(uint32_t num, uint32_t nth) {
if (nth>=32) {
// Catch error
// Log & Manage the error
}
return (num>>nth)&0x1u;
}
```

Let’s try it in practice now:

```
int main(void) {
uint32_t n = 0xFFu;
int i = 0;
printf("Printing last 8 bits:\n");
for(; i < 8; i++)
printf("%hhu", get_nth_bit(n,i));
printf("\nPriting the first 24 bits:\n");
for(; i < 32; i++)
printf("%hhu", get_nth_bit(n,i));
}
// Output
// Printing last 8 bits:
// 11111111
// Printing the first 24 bits:
// 000000000000000000000000
```

## Setting up the `nth`

bit of a number

The bit of a number `n`

can be set to `0`

or `1`

, and depending on the context, we can end up having two functions or macros:

```
#define set_nth_bit1(num, pos) ((num) |= (1 << (pos)))
#define set_nth_bit0(num, pos) ((num) &= ~(1 << (pos)))
// Or functions
inline void set_nth_bit0(uint32_t *n, uint8_t nth) {
*n &= ~(1u << nth);
}
inline void set_nth_bit1(uint32_t *n, uint8_t nth) {
*n |= (1u << nth);
}
```

Because both of the functions (and macros) can lead to *UB*, it’s advisable to validate `nth`

to make sure it’s not bigger than the length (in bits) of the type of `n`

(in our case it’s `uint32_t`

, so it should be smaller `<`

than `32`

).

Using the functions in code:

```
uint32_t n = 0x00FFu;
print_bits(stdout, n); printf("\n");
set_nth_bit0(&n, 5);
printf("bit 5 of n is: %hhu\n", get_nth_bit(n, 5));
print_bits(stdout, n); printf("\n");
set_nth_bit1(&n, 5);
printf("bit 5 of n is: %hhu\n", get_nth_bit(n, 5));
print_bits(stdout, n); printf("\n");
// Output
// 00000000000000000000000011111111
// bit 5 of n is: 0
// 00000000000000000000000011011111
// bit 5 of n is: 1
// 00000000000000000000000011111111
```

Visually, `set_nth_bit0`

looks like this:

Applying `&`

between `0`

and `1`

will always return `0`

. So we create *a mask* for the 5th bit (`1<<5`

), we flip it (`~(1<<5)`

) so we get a `0`

on the 5th position, and then we apply `&`

(bitwise `AND`

). The `1`

doesn’t stand a chance.

Visually, `set_nth_bit1`

looks like this:

Applying `|`

between `0`

and `1`

returns `1`

. So we create *a mask* for the 5th bit (`1<<5`

), then apply `|`

between the mask and the number to fix the *gap*.

## Toggling the `nth`

bit of a number

Toggling the bit of the number means changing the value of a specific bit from `0`

to `1`

or from `1`

to `0`

while leaving all the other bits unchanged.

The first reflex would be to re-use the previously defined functions `set_nth_bit1(...)`

and `set_nth_bit0(...)`

to improvise something like:

```
void toggle_nth_bit(uint32_t *n, uint8_t nth) {
if (get_nth_bit(n,nth)==0) {
set_nth_bit1(n, nth);
} else {
set_nth_bit0(n, nth);
}
}
```

But there’s a better and simpler way that avoids branching altogether and uses XOR:

```
void toggle_nth_bit(uint32_t *n, uint8_t nth) {
*n ^= (1u<<nth);
}
```

The idea is quite simple; we create a mask with `1`

on the `nth`

position (`1<<nth`

), and then we `^`

(`XOR`

) the number `n`

with the `mask`

. This will preserve all the bits of `n`

, minus the `nth`

bit will change values depending on its state (it will toggle).

Let’s visualise this, by imagining calling: `toggle_nth_bit(0xF0u, 3)`

:

The result of `toggle_nth_bit(0xF0u, 3)`

should be `0xF8`

:

```
uint32_t n = 0xF0u;
toggle_nth_bit(&n, 3);
if (n==0xF8u) {
printf("It works!");
}
// Output
// It works!
```

Or we perform the inverse operation on the same bit:

```
uint32_t n = 0xF8u;
toggle_nth_bit(&n, 3);
if (n==0xF0u) {
printf("It works!");
}
// Output
// It works!
```

# Getting, Setting, Clearing, and Toggling a bit portion of a number

## Clearing the last bits of a number

So let’s say we have a number `n`

. Our task is to write a generic method that clears the last `nbits`

of that number.

The solution is simple:

- We need to create a mask where all the bits are
`1`

, except the last`nbits`

, which are`0`

. - We apply an
`&`

operation between`n`

and the newly created mask;

To create the mask, we start from a value where all the bits are set to `1`

. This value can be easily obtained by flipping all the bits of `0`

: `~0x0u`

. Next, we left shift with `nbits`

and, voila, the mask is ready.

The code is:

```
void clear_last_bits(uint32_t *n, uint8_t nbits) {
*n &= (~(0x0u) << nbits);
}
```

To test it, let’s try to clear the last 4 bits of `0xFF`

. The result should be: `0xF0`

:

```
uint32_t n = 0xFFu;
clear_last_bits(&n, 4);
if (n==0xF0u) {
printf("It works!\n");
}
// Output
// It works!
```

Visually, the operation looks like this:

## Replacing multiple bits

In this case, the ask is simple; given an `uint16_t`

and two bit indices, `i`

and `j`

, we need to write a method that replaces all the bits between `i`

and `j`

(including `j`

) from `N`

with the value of `M`

. In other words, `M`

becomes a *substring* of `N`

that starts at `i`

and ends at `j`

.

The signature of the method should be the following:

```
void replace_bits(uint32_t *n, uint32_t m, uint8_t i, uint8_t j);
```

A simple solution that doesn’t impose any validation on `i`

, `j`

or `m`

can be:

```
void replace_bits(uint16_t *n, uint16_t m, uint8_t i, uint8_t j) {
// Creates a mask to clear the bits from i to j inside N
// The mask is made out of two parts that are stitched together using
// a bitwise OR
uint16_t mask = (~0x0u << (j+1)) | ((1<<i)-1);
// Clear the bits associated with the mask
*n &= mask;
// Align the bits to be replaced
m <<=i;
// Replace the bits from n with the value of m
*n |= m;
}
```

Executing the code:

```
uint16_t n = 0xDCBEu;
print_bits(stdout, n); printf("\n");
replace_bits(&n, 0x1u, 3, 6);
print_bits(stdout, n); printf("\n");
// Output
// 1101110010111110
// 1101110010001110
```

As you can see, the bits from positions `3`

to `6`

(inclusive) were replaced with the value of `0x1`

, which is `0b001`

in binary.

To understand what’s happening behind the scenes, we should go through the algorithm step by step.

Firstly we need to build a mask that selects the interval defined by `i`

and `j`

. The mask will be created by *stitching* together the two sections (using `|`

). The line of code where we create the `mask`

is: `uint16_t mask = (~0x0u << (j+1)) | ((1<<i)-1);`

. Visually it works like this:

The second step is to use the resulting `mask`

to clear the bits from `i`

to `j`

(including `j`

) inside `n`

: `*n &= mask;`

:

The third step is to shift the bits of `m`

with `i`

positions to the left to align them with the empty portion created by the `mask`

. And then use `m`

as a new mask: `*n |= m;`

:

## Reading multiple bits

Reading multiple bits (instead of replacing them) is a similar task to the one described above. We must write a method that works on an `uint16_t`

and two bit indices `i`

and `j`

. We need to *extract* and return the value of all the bits between `i`

and `j`

(including `j`

).

A proposed C function might look like this:

```
uint16_t get_bits(uint16_t input, uint8_t i, uint8_t j) {
uint16_t mask = (1u << (j - i + 1)) - 1;
mask <<= i;
return (input & mask) >> i;
}
```

Or, if we enjoy confusing our colleagues, we can try something like this:

```
uint16_t get_bits2(uint16_t input, uint8_t i, uint8_t j) {
uint16_t mask = (1u << (j + 1)) - (1 << i);
return (input & mask) >> i;
}
```

When we try them in practice, magic unfolds:

```
uint16_t n = 0xDCBE;
print_bits(stdout, n); printf("\n");
replace_bits(&n, 0x7u, 3, 6);
print_bits(stdout, n); printf("\n");
print_bits(stdout, get_bits(n, 3, 6)); printf("\n");
print_bits(stdout, get_bits2(n, 3, 6)); printf("\n");
// Output
// 1101110010111110
// 1101110010111110
// 0000000000000111
// 0000000000000111
```

It all boils down to how we’ve decided to implement the masking mechanisms:

`uint16_t mask = (1u << (j - i + 1)) - 1; mask <<= i; // OR`

`uint16_t mask = (1u << (j + 1)) - (1u << i);`

As you can see, in both versions (`get_bits`

and `get_bits2`

), we’ve decided to create the mask *in one go* without stitching together two sections as we did in `replace_bits`

.

Let’s take the first version to exemplify further. If we look closer, there’s no magic involved.

```
(1 << (j - i + 1)) -1
------------------
power of two -1
```

That’s a power of two from which we subtract `1`

. We know the bit pattern associated with that kind of number (\(2^n-1\)):

So, visually speaking, the mask forms like this:

`j-i+1`

gives the length of the mask (the contiguous zone of`1`

bits);- The second shift
`mask <<= i`

put`1`

bits to the right position.

# Bitwise operations and their relationship with the powers of two

There’s a strong relationship between bitwise operations and mathematical operations involving powers of two. This happening shouldn’t be any mystery or a surprise; after all, we use the powers of two to represent the number in the binary system.

## Multiplying a number with a power of two

Multiplying a number \(a\) with a power of two, \(a * 2^{n}\), is equivalent to writing `a<<n`

, shifting the bits of `a`

to the right with `n`

positions.

There’s a clear mathematical demonstration for this. If we go back to the beginning of the article and re-use the formula stated there, we know a number in the binary system can be written as a sum of the power of twos: \(A_{2} = \sum_{i=0}^{n} a_i * 2^i\), where \(a_{i} \in \{0, 1\}\). If we multiply both sides of the relationship with \(2^m\), the relationship becomes:

\[2^{m} * A_{2} = \sum_{i=0}^{n} a_i * 2^{i+m}\]We can intuitively understand that the first `m`

bits of information were lost, now when we sum; we don’t start with \(2^0\) anymore, but rather with \(2^{m}\), so that:

So, if we were to link the mathematical formula with what’s happening at the bit level, let’s take a look at the following picture:

Now let’s see if the compiler knows how to optimise the multiplication without explicitly telling it so. Given the following code:

```
int main(void) {
srand(0);
int i = rand();
for(; i < (1<<12); i*=4) {
printf("%d\n", 1);
}
return 0;
}
```

You can see that instead of writing `i<<=2`

in the loop, we’ve preferred to use the more *readable* `i*=4`

. If we compile the code (`gcc -O3`

for `x86-64`

) and look at the resulting assembly:

```
.LC0:
.string "%d\n"
main:
push rbx
xor edi, edi
call srand
call rand
cmp eax, 4095
jg .L2
mov ebx, eax
.L3:
mov esi, 1
mov edi, OFFSET FLAT:.LC0
xor eax, eax
; Shifts the value in ebx to the left by 2 bits (multiplication by 4)
sal ebx, 2
call printf
cmp ebx, 4095
jle .L3
.L2:
xor eax, eax
pop rbx
ret
```

You will see the compiler is smart enough to detect that one of the operands of `i*=4`

is a power of two, so it uses the equivalent `>>`

instruction, which is `sal ebx, 2`

, where:

`sal`

is an instruction that stands for*shift arithmetic left*;`ebx`

is the register where our`i`

value is kept;`2`

is the number of positions we shift to.

Compilers can perform this optimisation for you, so you shouldn’t bother.

## Dividing a number with a power of two

Dividing a number \(a\) with a power of two, \(a \div 2^{n}\), is equivalent to writing `a>>n`

. The mathematical demonstration is identical to the multiplication one so we won’t write it here.

But we can perform the following *smoke* test:

```
uint16_t a = 100u;
if (a/2 == a>>1) {
printf("Yes, we are right\n");
}
// Output
// Yes, we are right
```

Now let’s look at the following code:

```
int main(void) {
srand(NULL);
uint32_t n = rand(); // generates a random number
while(n!=0) { // while the number is different than 0
n /=2; // we divide it with 2
}
return 0;
}
```

If we compile the code with `gcc -O1`

(for `x86-64`

), the resulting assembly code is:

```
main:
sub rsp, 8
mov edi, 0
call srand
; Generate a random number and store the result in eax
call rand
; Test if the random number is 0 .
; If it is jump to .L2 otherwise continue
test eax, eax
je .L2
.L3:
; Copy the value of eax to edx
mov edx, eax
; Shift the value of eax to the right with 1 position
shr eax
; Compare the original in edx to 1 and jump back to .L3
cmp edx, 1
ja .L3
.L2:
mov eax, 0
add rsp, 8
ret
```

The important line here is `shr eax`

, where the compiler shifts the `eax`

one position to the right. Why did it do that? Our C code explicitly called division `n /=2;`

. Well, the compiler realised that the operand is `2`

, and there’s no reason to use division instead of simple `>>`

.

Fun fact, if we rewrite the C code with the bitwise optimisation by replacing the line `n/=2`

with the line `n>>=1`

, the resulting assembly code will be identical. Compilers can perform this optimisation for you, so you should rarely bother with *mundane* optimisations like this.

## Checking if a number is even or odd

Suppose we contemplate the following formula, where a number can be written as: \(A_{2} = \sum_{i=0}^{n} a_i * 2^i\), where \(a_{i} \in \{0, 1\}\), we will soon realise that: if we sum up powers of two in general (except \(2^{0}\)), \(A_{2}\) will always be even. A sum of even numbers is always even (we can use \(2\) as a common factor).

So the only indicator that gives the parity of the number is \(a_{0}*2^{0}\). \(a_{0}\) is the least significant bit, but in another way, it’s quite a critical fellow because it provides us with the answer to one crucial question: is the number even, or is it odd?

The rule is the following:

- If \(a_{0}=1\), thus activating \(2^{0}\), then the number is odd;
- If \(a_{0}=0\), thus
*deactivating*\(2^{0}\), then the number is even;

So to check the parity of a number is enough to mask it with `0x1`

, and get the last bit:

```
uint16_t a = 15u;
uint16_t b = 16u;
printf("a=%d is %s\n", a, a&0x1u ? "odd" : "even");
printf("a=%d is %s\n", b, b&0x1u ? "odd" : "even");
// Output
// a=15 is odd
// a=16 is even
```

## Getting the remainder when we divide with a power of two

The modulo operation `%`

is slow no matter the hardware architecture we are using. So whenever we can replace it with something more efficient, it’s advisable, even if compilers can theoretically optimise things like this for you.

As a rule `(a % (1<<n))`

is equivalent to `(a & ((1<<n)-1))`

, where `1<<n`

is the bitwise of saying \(2^n\).

If we go back to the formula, \(A_{2} = \sum_{i=0}^{n} a_i * 2^i\), where \(a_{i} \in \{0, 1\}\) and we divide into both sides with a power of two, \(2^m\), we will obtain:

\[\frac{A}{2^{m}} = a_{0} * \frac{1}{2^m} + a_{1} * \frac{1}{2^{m-1}} + a_2*\frac{1}{2^{m-2}} + ... + a_{n-1}*2^{n-m-1} + a_{n} * 2^{n-m}\]But at some point, the denominator of the fraction \(\frac{1}{2^{m-j}}\) will become negative again so that things will turn upside down yet again. This will happen when \(j \ge m\). So, for example, if `m = 3`

, we can write things like:

So to get the remainder, we need to select the last `3`

bits (with the mask `((1<<3)-1)`

) of the number:

```
uint16_t pow2 = 1u << 3;
for(int i = 1; i < 100; i++) {
printf("%2d mod %d=%d %c",
i, pow2, i & (pow2-1), i&0x7 ? ' ' : '\n');
}
// Output
// 1 mod 8=1 2 mod 8=2 3 mod 8=3 4 mod 8=4 5 mod 8=5 6 mod 8=6 7 mod 8=7 8 mod 8=0
// 9 mod 8=1 10 mod 8=2 11 mod 8=3 12 mod 8=4 13 mod 8=5 14 mod 8=6 15 mod 8=7 16 mod 8=0
// 17 mod 8=1 18 mod 8=2 19 mod 8=3 20 mod 8=4 21 mod 8=5 22 mod 8=6 23 mod 8=7 24 mod 8=0
// 25 mod 8=1 26 mod 8=2 27 mod 8=3 28 mod 8=4 29 mod 8=5 30 mod 8=6 31 mod 8=7 32 mod 8=0
// 33 mod 8=1 34 mod 8=2 35 mod 8=3 36 mod 8=4 37 mod 8=5 38 mod 8=6 39 mod 8=7 40 mod 8=0
// 41 mod 8=1 42 mod 8=2 43 mod 8=3 44 mod 8=4 45 mod 8=5 46 mod 8=6 47 mod 8=7 48 mod 8=0
// 49 mod 8=1 50 mod 8=2 51 mod 8=3 52 mod 8=4 53 mod 8=5 54 mod 8=6 55 mod 8=7 56 mod 8=0
// 57 mod 8=1 58 mod 8=2 59 mod 8=3 60 mod 8=4 61 mod 8=5 62 mod 8=6 63 mod 8=7 64 mod 8=0
// 65 mod 8=1 66 mod 8=2 67 mod 8=3 68 mod 8=4 69 mod 8=5 70 mod 8=6 71 mod 8=7 72 mod 8=0
// 73 mod 8=1 74 mod 8=2 75 mod 8=3 76 mod 8=4 77 mod 8=5 78 mod 8=6 79 mod 8=7 80 mod 8=0
// 81 mod 8=1 82 mod 8=2 83 mod 8=3 84 mod 8=4 85 mod 8=5 86 mod 8=6 87 mod 8=7 88 mod 8=0
// 89 mod 8=1 90 mod 8=2 91 mod 8=3 92 mod 8=4 93 mod 8=5 94 mod 8=6 95 mod 8=7 96 mod 8=0
// 97 mod 8=1 98 mod 8=2 99 mod 8=3
```

## Determining if an integer is a power of two

Without taking bitwise operations into consideration, our first reflex to check if a number is a power of two is to use *logarithms*. It’s not the best solution, and you will shortly see why:

```
#include <math.h>
int is_power_of_two(int num) {
// Negative numbers are not power of two
// 0 is not a power of two
if (num <= 0) {
return 0;
}
// We compute the logarithm
double log2num = log2(num);
// We check if the logarithm is an integer
return (log2num == floor(log2num));
}
```

Code looks fine, but it contains a dangerous comparison between `log2num==floor(log2num)`

. The reason it’s dangerous is that `double`

numbers cannot be represented with exact precision, errors by approximation can *build up*, and subtle differences can appear rendering the comparison useless.

If you don’t believe me, let’s try the following code:

```
double x = 10 + 0.1 + 0.2 + 0.2; // should be 10.5
double y = 11 - 0.2 - 0.2 - 0.1; // should be 10.5
printf("x and y are%sequal\n", x == y ? " " : " not ");
printf("the difference between the numbers is: %1.16f\n", x-y);
// Output
// x and y are not equal
// the difference between the numbers is: -0.0000000000000036
```

A disputed strategy of solving this is to introduce an *epsilon* (a very small value representing tolerance) and compare doubles by approximating equality. So instead of making the comparison (`x==y`

) directly, we can compare their difference with epsilon.

```
double epsilon = 0.000001;
if (fabs(x-y) <= epsilon) {
// the numbers are equal or almost equal
}
```

This doesn’t solve the problem by itself, but it can greatly reduce the number of errors we get. So why don’t we implement this the *professional way*. A simple *bitwise trick* that determines if a number is a power of two is to write a function like this:

```
bool is_pow2(uint16_t n) {
return (n & (n-1)) == 0;
}
```

And when we test it we saw that everything looks fine:

```
uint16_t a = 1u<<2,
b = 1u<<3,
c = (1u<<3) + 1;
printf("%hu is a power of two: %s.\n", a, is_pow2(a) ? "yes" : "no");
printf("%hu is a power of two: %s.\n", b, is_pow2(b) ? "yes" : "no");
printf("%hu is a power of two: %s.\n", c, is_pow2(c) ? "yes" : "no");
// Output
// 4 is a power of two: yes.
// 8 is a power of two: yes.
// 9 is a power of two: no.
```

**Spoiler Alert** the function has one subtle bug: it doesn’t behave correctly when `n`

is `0`

. Let’s try it:

```
uint16_t a = 0x0u;
printf("%hu is a power of two: %s.\n", a, is_pow2(a) ? "yes" : "no");
// Output
// 0 is a power of two: yes.
```

Mathematicians will say: *Raising any non-zero number to a natural power will never result in 0*. So our code should be re-written as such to consider this corner case:

```
bool is_pow2(uint16_t n) {
return n && !(n & (n-1));
}
```

Now that things are sorted let’s take a look and see why the function works. Firstly, we all know that a number which is a power of two, in its binary representation has exactly one bit of `1`

on the power’s column:

When we subtract `1`

from a power of two, the bit pattern looks like this:

So if we put those two pictures side by side, we should see how things are going:

We can see that all the bits nullify themselves when we apply `&`

. If only one bit would be different (when the number is not a power of two), this trick won’t work.

## Getting the next power of two

There are cases in code when, given a number `n`

, you want to determine the first power of two that is greater than `n`

. For example, if `n=7`

, the next power of two bigger than `n`

is `8`

. Or, if `n=13`

, the next power of two bigger than `13`

is `16`

.

The programmer’s reflex would be to write a function like:

```
uint32_t next_power_of_two_naive(uint32_t n) {
uint32_t r = 1u;
while(r<x)
r*=2; // or r<<=1
return r;
}
```

Code works, but it’s prone to errors:

```
uint32_t n1=0u, n2=128u, n3=7u, n4=UINT32_MAX;
printf("next power of two for %u is %u\n", n1, next_power_of_two_naive(n1));
printf("next power of two for %u is %u\n", n2, next_power_of_two_naive(n2));
printf("next power of two for %u is %u\n", n3, next_power_of_two_naive(n3));
printf("next power of two for %u is %u\n", n4, next_power_of_two_naive(n4));
// Output
// next power of two for 0 is 1
// next power of two for 128 is 128
// next power of two for 7 is 8
// ^C <--- HAD TO CLOSE THE PROGRAM, INFINITE LOOP
```

Let’s abandon this solution and try to make use of bitwise operations. The new code should be like this:

```
uint32_t next_power_of_two(uint32_t n) {
n--;
n |= n >> 1;
n |= n >> 2;
n |= n >> 4;
n |= n >> 8;
n |= n >> 16;
n++;
return n;
}
```

Does it work better ?

```
uint32_t n1=0u, n2=128u, n3=7u, n4=UINT32_MAX;
printf("next power of two for %u is %u\n", n1, next_power_of_two(n1));
printf("next power of two for %u is %u\n", n2, next_power_of_two(n2));
printf("next power of two for %u is %u\n", n3, next_power_of_two(n3));
printf("next power of two for %u is %u\n", n4, next_power_of_two(n4));
// Output
// next power of two for 0 is 0
// next power of two for 128 is 128
// next power of two for 7 is 8
// next power of two for 4294967295 is 0
```

Well, at least the code doesn’t enter an infinite loop when `n=UINT32_MAX`

, but returns erroneous results for `0`

. So we can definitely change something to it:

```
uint32_t next_power_of_two(uint32_t n) {
if (n==0) return 1; // takes care of the special case
n--;
n |= n >> 1;
n |= n >> 2;
n |= n >> 4;
n |= n >> 8;
n |= n >> 16;
n++;
return n;
}
```

Now, we should also do something when the numbers are getting closer to `UINT32_MAX`

. As you probably know, `UINT32_MAX`

is not a power of two (it’s actually `(1<<32)-1`

), so searching for the next power of two, after `1<<31`

, doesn’t make any sense. If we let the function in the current form:

```
uint32_t n1=(1u<<31)+1,
n2=(1u<<31)+2,
n3=(1u<<31)+3;
printf("next power of two for %u is %u\n", n1, next_power_of_two(n1));
printf("next power of two for %u is %u\n", n2, next_power_of_two(n2));
printf("next power of two for %u is %u\n", n3, next_power_of_two(n3));
// Output
// next power of two for 2147483649 is 0
// next power of two for 2147483650 is 0
// next power of two for 2147483651 is 0
```

All the results will be `0`

. So we should branch the function again and decide on what we’re going to do when `n>(1<<31)`

.

But now let’s get back to this *magic*, and see what’s happening:

```
n--;
n |= n >> 1;
n |= n >> 2;
n |= n >> 4;
n |= n >> 8;
n |= n >> 16;
n++;
```

Let’s assume `n=0x4000A8CC`

(or `n=1073785036`

). Calling `next_power_of_two(0x4000A8CC)`

will return `0x80000000`

:

```
n = 01000000000000001010100011001100 (0x4000A8CC)
n-- = 01000000000000001010100011001011 (0x4000A8CB)
n>>1 = 00100000000000000101010001100101
n = 01000000000000001010100011001011
n|(n>>1) = 01100000000000001111110011101111
-->1s 1s<--
n>>2 = 00011000000000000011111100111011
n = 01100000000000001111110011101111
n|(n>>2) = 01111000000000001111111111111111
--->1s 1s<---
n>>4 = 00000111100000000000111111111111
n = 01111000000000001111111111111111
n|(n>>4) = 01111111100000001111111111111111
----->1s 1s<------
n>>8 = 00000000011111111000000011111111
n = 01111111100000001111111111111111
n|(n>>8) = 01111111111111111111111111111111
------->1s 1s<--------
n>>16 = 00000000000000000111111111111111
n = 01111111111111111111111111111111
n|(n>>8) = 01111111111111111111111111111111
--------->1s 1s<---------
n++ = 10000000000000000000000000000000 (0x80000000)
```

As you can see, at each iteration, we are slowly creating a mask (in the form `(1<<n)-1`

). By the end, when adding `1`

, we get the next power of two: `1<<n`

.

# Implementing a BitSet (or BitVector)

`BitSet`

or `BitVector`

are used interchangeably to refer to a data structure representing a collection of bits, each of which can be 0 or 1. A `BitSet`

is like a massive panel with `ON/OFF`

switches. You can alter the state of those `ON/OFF`

switches if you know their position (index in the set).

However, there can be some differences in the implementation and usage of the two terms based on the context they are being used. Sometimes, A

`BitSet`

may refer to a fixed-sized collection of bits, while`BitVector`

may refer to a dynamically resizable collection of bits.

For simplicity, we will implement a `BitSet`

using, you’ve guessed it, bitwise operations. The minimal set of operations a `BitSet`

should support are:

- Setting a bit to 0 (already covered here);
- Setting a bit to 1 (already covered here);
- Retrieving the value of the bit (already covered here);
- Resetting the
`BitSet`

(setting all the bits to`0`

).

Now that we know how to manipulate the individual bits of an integer, we can say that:

- a
`uint16_t`

can be considered a`BitSet`

with a size of`16`

; - a
`uint32_t`

can be considered a fixed-sized`BitSet`

with a size of`32`

; - a
`uint64_t`

can be considered a fixed-sized`BitSet`

with a size of`64`

;

But what if we want a `BitSet`

with a size bigger than `64`

? We don’t have `uint128_t`

(yet!). So we will probably have to use `4`

`uint32_t`

or `2`

`uint64_t`

. So a `BitSet`

is an array of fixed-sized numbers (`uintN_t`

), where we index bits by their relative position in the `BitSet`

.

The following diagram describes an array of 4 `uint32_t`

integers with a total of `4*32`

ON/OFF switches (bits 0 or 1). Each bit should be accessible relative to their position in the array, not to the relative position in their integer (words):

To implement the `BitSet`

we will use C macros:

```
#define SET_NW(n) (((n) + 31) >> 5)
#define SET_W(index) ((index) >> 5)
#define SET_MASK(index) (1U << ((index) & 31))
#define SET_DECLARE(name, size) uint32_t name[SET_NW(size)] = {0}
#define SET_1(name, index) (name[SET_W(index)] |= SET_MASK(index))
#define SET_0(name, index) (name[SET_W(index)] &= ~SET_MASK(index))
#define SET_GET(name, index) (name[SET_W(index)] & SET_MASK(index))
```

Things can look daunting at first, so let’s take each line and explain what it does.

`SET_NW`

```
#define SET_NW(n) (((n) + 31) >> 5)
```

This macro can determine the number of `uint32_t`

words we need to represent a `BitSet`

of a given size.

If for example, we need `47`

positions, then `SET_NW(47)`

will return `(47+31)>>5`

, which is equivalent to saying `(47+31)/32=2`

. Our array needs at least two `uint32_t`

integers to hold `47`

values.

`SET_W`

```
#define SET_W(index) ((index) >> 5)
```

This macro returns the index of the `uint32_t`

word that contains the bit we are looking for at the given index.

For example, if our `BitSet`

has `64`

indices (2 `uint32_t`

words), calling `SET_W(35)`

will return `35>>5`

, which is equivalent to saying `35/32=1`

. So we must look for the bit in the second `uint32_t`

.

`SET_MASK`

```
#define SET_MASK(index) (1U << ((index) & 31))
```

Based on a given index, this returns the mask to select that individual bit from the `uint32_t`

word. `index & 31`

is equivalent to saying `index % 32`

.

So, if, for example, we call `SET_MASK(16)`

it will create a mask that selects the bit `16`

from the corresponding `uint32_t`

word. If we call `SET_MASK(35)`

, it will create a mask that selects the bit `3`

from the corresponding `uint32_t`

word.

`SET_MASK`

works at the word level, while `SET_W`

works at the array level.

`SET_DECLARE`

```
#define SET_DECLARE(name, size) uint32_t name[SET_NW(size)] = {0};
```

This macro declares a bitset array (`uint32_t[]`

) with the given `name`

and `size`

, and initializes it to all zeros. After declaration, the `BitSet`

is a clean state, no ON/OFF switch is activated.

`SET_1`

and `SET_0`

```
#define SET_1(name, index) (name[SET_W(index)] |= SET_MASK(index))
#define SET_0(name, index) (name[SET_W(index)] &= ~SET_MASK(index))
```

Those macros can be used to SET to `0`

or `1`

specific bits inside the `BIT_VECT`

. The techniques for doing this were already described here.

`SET_GET`

```
#define SET_GET(name, index) (name[SET_W(index)] & SET_MASK(index))
```

This macro is used to check whether a bit is a set. If the bit is set to `1`

, the macro returns a non-zero value. If the bit is set to `0`

, the macro returns `0`

.

## Using the `BitSet`

To test the newly defined “macro” `BitSet`

we can use this code:

```
// Declares uint32_t bitset[3] = {0};
SET_DECLARE(bitset, 84);
// Sets the bits 1 and 80 to 1
SET_1(bitset, 1);
SET_1(bitset, 80);
printf("Is bit %d set? Answer: %s.\n", 1, SET_GET(bitset, 1) ? "YES" : "NO");
printf("Is bit %d set? Answer: %s.\n", 2, SET_GET(bitset, 2) ? "YES" : "NO");
printf("Is bit %d set? Answer: %s.\n", 80, SET_GET(bitset, 80) ? "YES" : "NO");
//Output
// Is bit 1 set? Answer: YES.
// Is bit 2 set? Answer: NO.
// Is bit 80 set? Answer: YES.
```

# Swapping two numbers

This bitwise trick is generally uncalled for, but it’s nice to use when you want to deceive your naive colleagues.

Swapping the value of two variables is normally done using an intermediary variable. This is one of the first “algorithms” we learn when we start programming:

```
void swap(int *a, int *b) {
int tmp = *a;
*a = *b;
*b = tmp;
}
int main(void) {
int a = 5, b = 7;
printf("Before swap: a=%d b=%d\n", a,b);
swap(&a, &b);
printf("After swap: a=%d b=%d\n", a,b);
return 0;
}
```

But there are two other ways of achieving the same result without the need to introduce a new variable, `tmp`

:

```
void swap_xor(uint8_t *a, uint8_t *b) {
*a ^= *b;
*b ^= *a;
*a ^= *b;
}
int main(void) {
uint8_t a = 7u;
uint8_t b = 13u;
printf("Before swap: a=%hhu b=%hhu\n", a, b);
swap_xor(&a, &b);
printf("After swap: a=%hhu b=%hhu\n", a, b);
return 0;
}
// Output
// Before swap: a=7 b=13
// After swap: a=13 b=7
```

What kind of magic is this? Well, after those two lines of code: `*a ^= *b; *b ^= *a;`

we can actually say that `*b=(*b)^((*a)^(*b))`

, but because `^`

(`XOR`

) is associative and commutative, the relationship also translates to `*b=(*b)^(*b)^(*a)`

, which is equivalent to `*b=0^(*a)`

, which is equivalent `*b=*a`

, wow, did just `b`

become `a`

?

Again, we can also write `*a=((*a)^(*b))^((*b)^((*a)^(*b)))`

, which is equivalent to `*a=(*a)^(*a)^(*b)`

, wow, did `a`

just become `b`

? It looks complicated, but it’s not. Put this on paper, and the mystery will unfold.

# Bitwise operations and chars

Characters in C (`char`

) described by this wonderful mapping, more details about ASCII codes here:

All, without getting deeper into the complicated realm of character encoding, we can undoubtedly say that your average `char`

in `C`

is a number. All the printable `char`

symbols are found in the following interval: `[32..126]`

.

The uppercase letters are found inside the interval: `[65..90]`

, while the lowercase letters are to be found inside the interval: `[61..79]`

. Because `char`

s are numbers, we can use bitwise operations for them.

Uppercase and lowercase letters have identical bit patterns, except *the column* corresponding to `1<<5`

. So with the right masks put in place, we can transition back and forth from lowercase to uppercase format. But what is the right mask? Well, it’s exactly the one corresponding to `0x20`

, which is the `' '`

(the space) character.

So if we take an uppercase letter and `| ' '`

, we will obtain a lowercase letter because we will activate the bit corresponding to `1<<5`

.

```
char *p = "ABCDEFGH";
while(*p) {
printf("%c", *p | ' ');
p++;
}
// Output
// abcdefgh
```

If on the contrary, we take a lowercase letter and `& '_'`

(which corresponds to `0b01011111`

) we are going to “eliminate” the `1<<5`

bit and transform the initial letter to its uppercase form:

```
char *p = "abcdefgh";
while(*p){
printf("%c", *p & '_');
p++;
}
// Ouput
// ABCDEFGH
```

If we want to toggle the case, we use `^ ' '`

(`XOR <space>`

):

```
char *p = "aBcDeFgH";
while(*p) {
printf("%c", *p ^ ' ');
p++;
}
// Output
// AbCdEfG
```

Other bitwise tricks involving `char`

that you might find interesting are:

```
// Getting the lowercase letter position in the alphabet
for(char i = 'a'; i <= 'z'; i++) {
printf("%c --> %d\n", i, (i ^ '`'));
}
// Output
// a --> 1
// b --> 2
// c --> 3
// d --> 4
// e --> 5
// f --> 6
// g --> 7
// ... and so on
```

```
// Getting the uppercase letter position in the alphabet
for(char i = 'A'; i <= 'Z'; i++) {
printf("%c --> %d\n", i, (i & '?'));
}
// Output
// A --> 1
// B --> 2
// C --> 3
// D --> 4
// E --> 5
// F --> 6
// G --> 7
// ... and so on
```

# Gray codes and permutations

Gray Code, also known as *Reflected Binary* is a binary numeral system where two consecutive numbers differ in only one-bit position. This new way of representing binary numbers is useful in applications such as electronics, where errors due to spurious output transitions can be eliminated using *Gray Code* instead of the traditional binary code (the one we’ve used until now).

The table of correspondence looks like this:

Decimal | Binary | Gray Code | Decimal Gray |
---|---|---|---|

0 | 0000 | 0000 | 0 |

1 | 0001 | 0001 | 1 |

2 | 0010 | 0011 | 3 |

3 | 0011 | 0010 | 2 |

4 | 0100 | 0110 | 6 |

5 | 0101 | 0111 | 7 |

6 | 0110 | 0101 | 5 |

7 | 0111 | 0100 | 4 |

8 | 1000 | 1100 | 12 |

9 | 1001 | 1101 | 13 |

10 | 1010 | 1111 | 15 |

11 | 1011 | 1110 | 14 |

12 | 1100 | 1010 | 10 |

13 | 1101 | 1011 | 11 |

14 | 1110 | 1001 | 9 |

15 | 1111 | 1000 | 8 |

The algorithm for transitioning from the binary system to the *Gray Binary System* is as follows:

```
uint8_t gray_code(uint8_t bv) {
uint8_t gv = 0; // 1. We initialize the result with 0
uint8_t mask = bv; // 2. We use the input binary number as a mask
while (mask) { // 3. Until the mask is different than 0
gv ^= mask; // 4. We XOR the result with the mask
mask >>= 1; // 5. We shift the mask one bit to the right
}
return gv; // 6. We return the corresponding Gray Code
}
```

If we run the code, it will return the previously described table of correspondence:

```
for(uint8_t i = 0; i < 16; i++) {
print_bits(stdout, i);
printf(" - ");
print_bits(stdout, gray_code(i));
printf("\n");
}
// Output
// 00000000 - 00000000
// 00000001 - 00000001
// 00000010 - 00000011
// 00000011 - 00000010
// 00000100 - 00000111
// 00000101 - 00000110
// 00000110 - 00000100
// ... and so on
```

A less obvious utilisation of *Gray Codes* is that we can use them to generate permutations of a given set of elements (such as the characters of string, or the elements of an array). The basic idea is simple, each permutation is a sequence of *Gray Codes*, where each code represents a swap between adjacent elements. By iterating from all the *Gray Codes*, we do swaps, and at the same time, generate each permutation.

# That’s it

The world of bitwise tricks is much bigger than what was covered in this article. Thank you for reading up until this point. Please check the *References* section below to see more on the topic.

If you are curious to see some of my code where I did use bitwise operations intensively, please check up the following two articles:

# Around the web

This article has been discussed on:

## Comments
